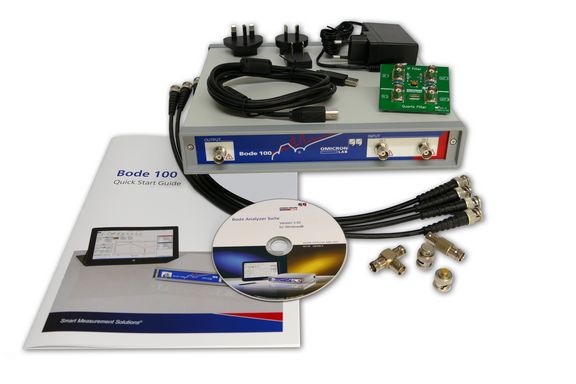

Vector Network Analyzer - Bode 100

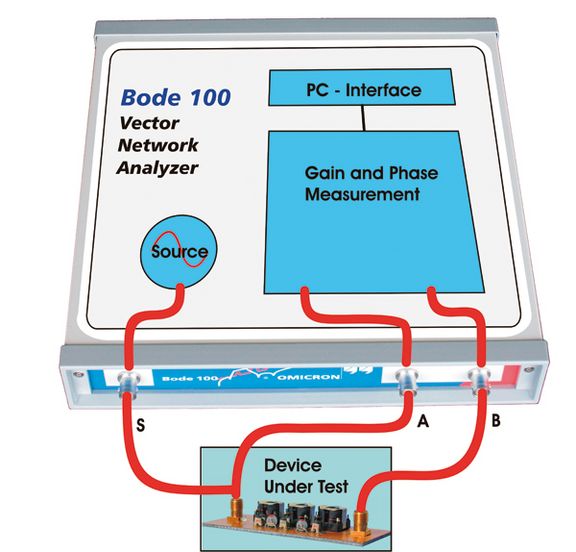

With the multifunctional Bode 100 you get an exact picture of your electronic circuits and components in a frequency range from 1 Hz to 50 MHz. Bode 100 is a state of the art Vector Network Analyzer which also works as Frequency Response Analyzer or Gain/Phase Meter and as a powerful Impedance Analyzer.
With its high accuracy and great price-performance ratio, the Bode 100 is the best choice for industrial applications as well as research and educational labs.

Applications
Use Bode 100 to measure

• Complex gain of active and passive circuits
• Complex impedance and admittance of active and passive devices
• Swept S-parameters of electronic circuits and filters
• Group delay characteristics

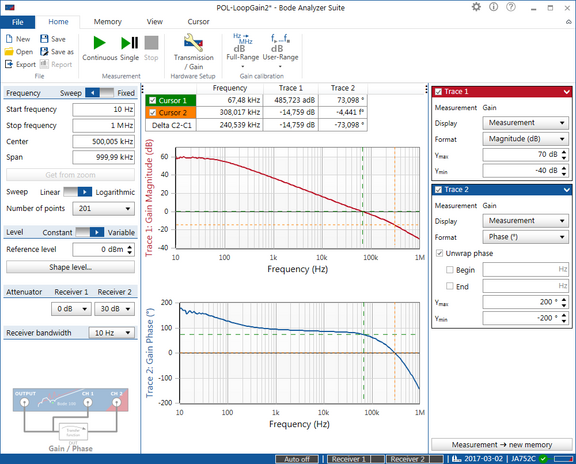

• Stability of control circuits such as DC/DC converters in power supplies
• Parasitics of passive components and circuit boards
• Power-plane impedance for optimum decoupling
• Reflection coefficient and return loss of filters, antennas or amplifiers
• Ultrasonic and piezo electric devices
• Resonance behavior of high Q-circuits like oscillating crystals
• Resonance frequency and Q-factor of RFID and NFC tags and antennas
