PicoScope 6000 Series

Deep-memory, high-performance oscilloscopes and MSOs
The PicoScope 6000 Series fixed resolution and FlexRes oscilloscopes provide 8 to 12 bits of vertical resolution, with up to 3 GHz bandwidth and 10 GS/s sampling rate.

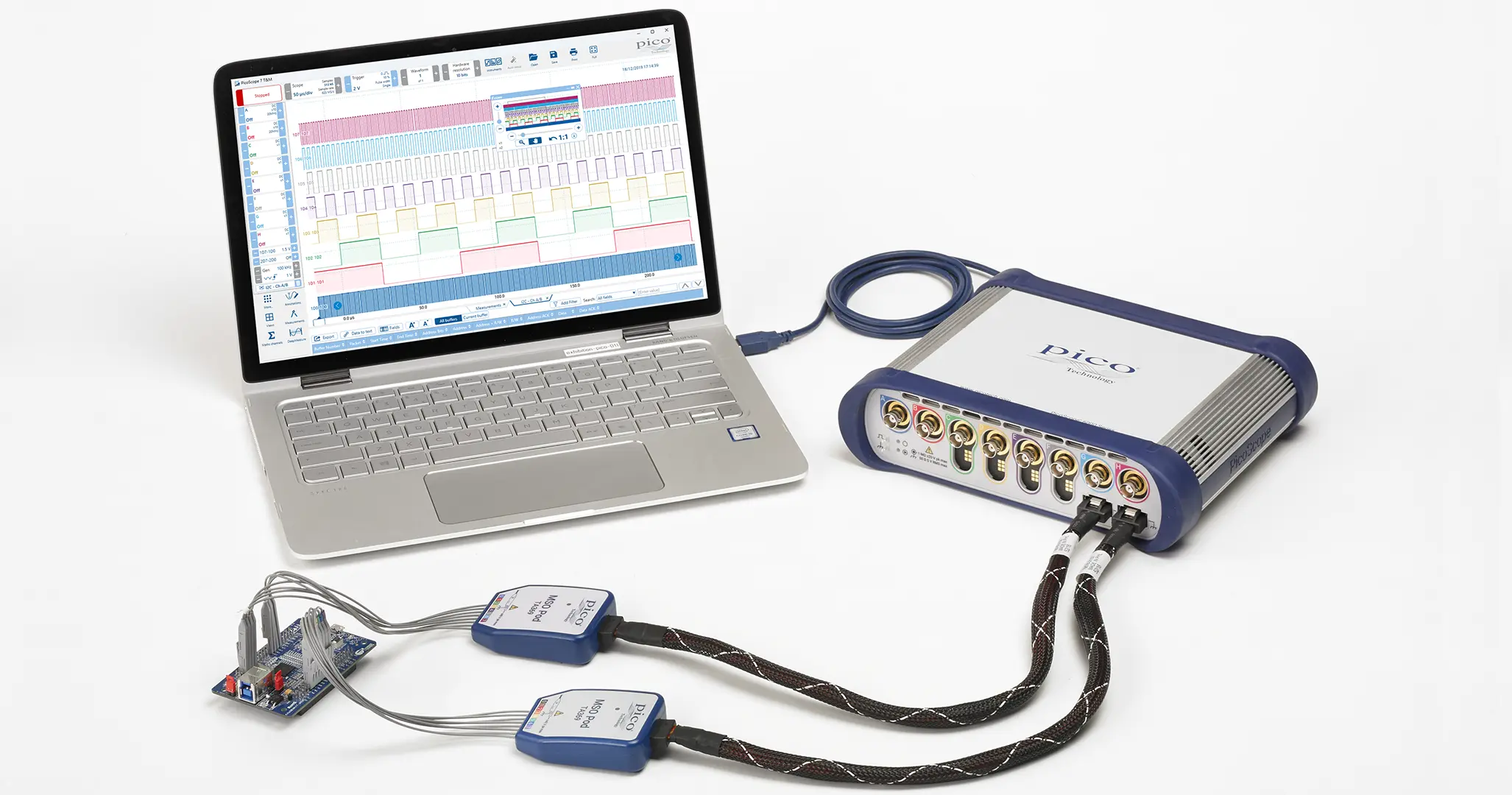

Models with four or eight analog channels have the timing and amplitude resolution you need to reveal signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.

• Up to 3 GHz bandwidth
• 8-bit to 12-bit FlexRes ADC
• A choice of 4 (up to 3 GHz) or 8 (up to 500 MHz) analog channels
• Supports up to 16 digital MSO channels
• 200 ms capture time at 5 GS/s
• Up to 10 GS/s with the PicoScope 6428E-D
• Up to 4 GS capture memory
• 50 MHz 200 MS/s 14-bit AWG
• 300 000 waveforms per second update rate
• PicoScope, PicoLog and PicoSDK® software included
• Mask limit testing and user-definable actions
• High-resolution time-stamping of waveforms
• Over ten million DeepMeasure™ results per acquisition
• Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt, rise/fall time and logic
• Measurement limits and actions
